Product Configurator

Pick a part, see it snap into place in 3D. Product Configurator is a graph-driven configuration engine: an assembly is a directed graph of nodes and edges, each node holds parts, each part references a 3D model asset, and connectors on parts encode how pieces fit together. A Backbone + Three.js single-page app drives the UX, a Java EE backend walks the graph to resolve valid choices, and the result is rendered live in WebGL — all packaged as one EAR on JBoss.

The idea

Let a customer configure a product visually — a table, a Lego figure, a piece of furniture — and see it assemble in 3D as they choose.

A configurable product is modelled as a directed graph: nodes are configurable decision points, edges define which nodes can follow which, and each node carries one or more parts (the actual selectable items). A part references a 3D asset (a Three.js geometry stored in MongoDB GridFS) and exposes connectors — 3D positions and rotations that say where it joins neighbouring parts. When a user picks a part, the backend walks the graph, adds the adjacent nodes’ parts, aligns them in 3D via the connectors, and returns both the assembled product and the next set of available choices.

The work splits into three layers:

1. Model — an assembly graph editor (d3 force layout) and a part editor (Three.js) let an author build the configuration graph, place 3D models and define connectors.
2. Resolve — a JAX-RS endpoint runs the graph engine: load the in-memory graph, apply the user’s choices, walk adjacent nodes, align parts in 3D and return the assembled product plus the next available choices.
3. View — a Three.js WebGL viewer renders the assembled product, and an embeddable widget lets the configurator be dropped onto any third-party page with a single <script> tag.

System architecture

The diagram shows the full stack as it ships: the JBoss application server runs a single Configurator.ear made of an EJB module (domain, DAOs, JAX-RS resources, the graph/product engine) and two WAR frontends — the Backbone editor at /editor and the embeddable viewer at /embed. MySQL holds the configuration graph (users, assemblies, nodes, parts, edges, connectors, assets, settings); MongoDB GridFS holds the 3D model files and textures. The flagship endpoint POST /rest/configurator/product is where a client sends its choices and gets back the assembled 3D product.

The configuration graph

The whole product model is a directed graph. The diagram below shows how the entities relate: a user owns assemblies; an assembly has nodes and directed edges (node → node); each node holds parts; each part references a 3D asset and exposes connectors that sit on an edge; connectors carry the 3D position and rotation that the PartAligner uses to snap parts together.

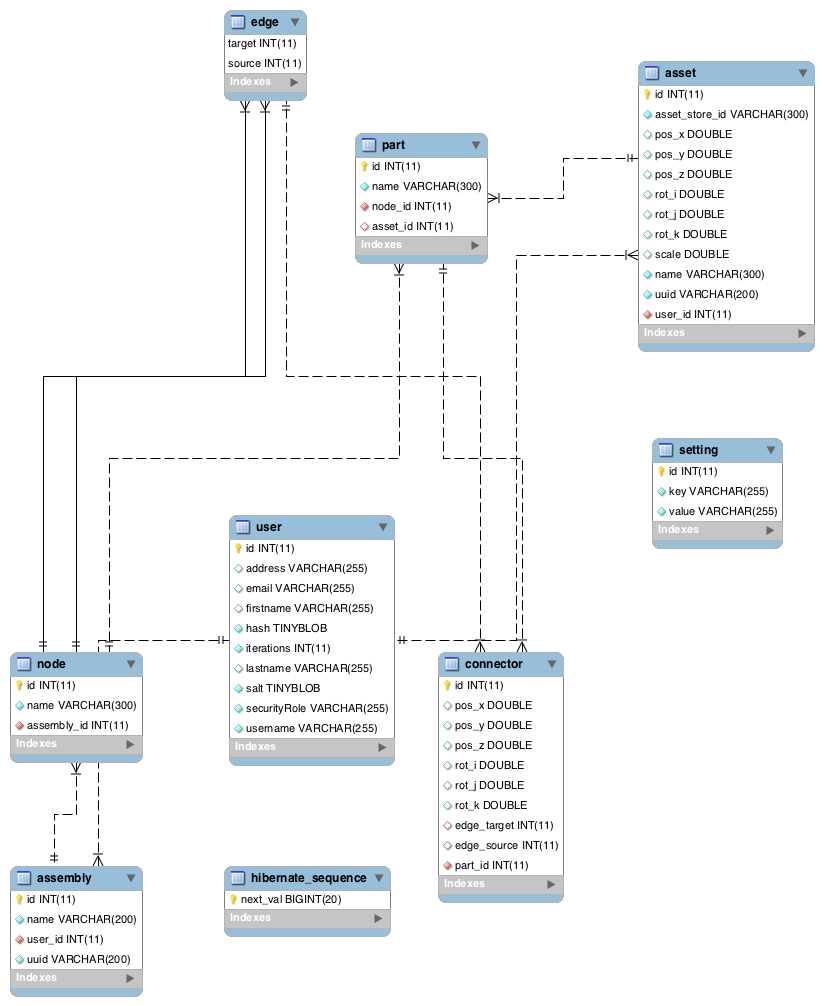

The full entity-relationship diagram of the relational schema is below.

Architecture by component

1. Backend (Java EE 6)

A classic Java EE stack — EJB 3.1 + CDI + JPA 2.0 (Hibernate 3.6) + JAX-RS 1.1 (RESTEasy) + Hibernate Search — packaged as a single EAR and deployed to JBoss AS 7.1.1. The Maven reactor builds four modules:

• configurator-ejb (packaging ejb) — all domain logic: JPA entities, @Stateless DAOs, JAX-RS resources, the graph/product engine and the MongoDB integration.
• configurator-web-editor (packaging war, context root /editor) — the Backbone authoring SPA, built with Bower + RequireJS (r.js optimizer).
• configurator-web-embed (packaging war, context root /embed) — the embeddable viewer widget, built with npm + Gulp (Browserify).
• configurator-ear (packaging ear, Configurator.ear) — aggregates the EJB jar and both WARs via application.xml.

Entity layer. Nine JPA entities in com.jiekebo.model.persistence map the configuration graph to MySQL: UserEntity, AssemblyEntity, NodeEntity, PartEntity, EdgeEntity (composite key source/target via @IdClass), ConnectorEntity, AssetEntity, SettingEntity and HibernateSequenceEntity. Two @Embeddable value objects — Position (x/y/z) and Rotation (i/j/k Euler angles with full rotation-matrix math) — carry the 3D transforms. An AssetStoreEntity POJO (not @Entity) represents a parsed Three.js mesh and lives in MongoDB, not MySQL.

DAO layer. @Stateless session beans (AssemblyDao, NodeDao, PartDao, EdgeDao, ConnectorDao, AssetDao, UserDao, SettingDao, AssetStoreDao) wrap a @PersistenceContext EntityManager. AssetStoreDao is the exception — it talks to MongoDB GridFS for 3D model files and the texture collection for base64-encoded texture images.

Business layer. GraphLoader (@Startup @Singleton) builds an in-memory graph cache (ConcurrentHashMap) of all assemblies at startup; ProductBuilder is the configurator engine — it loads the graph, applies the user’s part choices, walks adjacent nodes and runs PartAligner to compute 3D positions, returning a ProductResponse with the added parts and the next available choices. UserController handles PBKDF2 password hashing and authentication.

REST layer. JaxRsActivator (@ApplicationPath("rest")) activates JAX-RS under /rest/. Resources expose full CRUD for assemblies, nodes, parts, edges, connectors and assets, plus GraphService (graph cache rebuild) and UserService (auth). The flagship endpoint is POST /rest/configurator/product (@PermitAll) — it takes a ProductRequest and returns the assembled product. SecurityInterceptor (a RESTEasy PreProcessInterceptor) enforces HTTP Basic auth with @RolesAllowed/@PermitAll and pushes the authenticated UserEntity into the request context; CorsInterceptor adds the CORS headers the embed widget needs to call the API cross-origin.

2. Frontend — editor SPA (Backbone + Three.js + d3)

A Backbone.js single-page app built with RequireJS/Bower, deployed as a WAR at /editor. Templating is Handlebars, utility is lodash, DOM is jQuery — the classic Backbone stack. Routing (Backbone.Router) drives four pages:

• Configurator (#configurator/:id) — the end-user product configuration page. A Product collection POSTs choices to /rest/configurator/product, the 3D EditorView re-renders the assembled product, and an AvailableChoices panel shows the dropdowns for the next configurable parts. An EmbedStringView generates a copy-to-clipboard embed snippet (<script> tag + data-uuid div) via ZeroClipboard.
• Graph Editor (#graphEditor/:id) — a node/edge graph editor for an assembly, drawn with d3 v3 force layout (d3.layout.force, SVG). Add, rename and delete nodes; drag to create directed edges.
• Part Editor (#partEditor/:id) — a Three.js editor for parts, assets and connectors within a node. Camera/select/translate/rotate/scale modes via TransformControls; connectors are pickable magenta cubes selected by THREE.Raycaster.
• Dashboard (#home) — the landing page.

Shared 3D components: EditorView (a THREE.WebGLRenderer viewport with a PerspectiveCamera, OrbitControls, TransformControls and a per-frame render loop over three scenes — modelScene, connectorScene, editorScene) and SceneManager (loads Three.js JSON geometries from the backend asset store via THREE.JSONLoader, places/rotates/scales meshes, manages connector tokens).

State is classic Backbone — models and collections are the stores, a shared Backbone.Events bus decouples views, and act.js (a custom command/undo library) wraps every mutation as an Act.Action with persist/destroy callbacks that drive model.save()/model.destroy() against the REST API.

3. Frontend — embeddable widget (Backbone + Three.js)

A Browserify/Gulp-built read-only subset of the editor, deployed as a WAR at /embed and consumable by any third-party page with a single script tag and a container:

<div id="configurator" data-uuid="e2aa656e-cc5b-4871-b752-4e33eaf2ffc9"></div>
<script src="/embed/configurator-0.0.1-SNAPSHOT.js"></script>

The widget reads the data-uuid, loads the assembly, drives the POST /rest/configurator/product flow and renders the assembled product in Three.js — the same Configurator + Controls + AvailableChoices + EditorView + SceneManager views as the editor, minus the authoring tools. Example pages (table.html, ikea.html, lego.html, aiaiai.html) under src/htdocs/example/ show it skinned for different products.

4. Databases

Two stores, split by data shape:

• MySQL 5.6 (InnoDB) — the configuration graph. Datasource java:jboss/datasources/configurator, Hibernate dialect MySQL5InnoDBDialect, hbm2ddl.auto=update keeps the schema in sync with the entities. Nine tables: user, assembly, node, part, edge, connector, asset, setting, hibernate_sequence. Schema and seed data live in docker/mysql/dump.sql.
• MongoDB (GridFS) — the 3D model assets. AssetEntity.asset_store_id (an ObjectId) links the MySQL asset row to a GridFS file containing a Three.js JSON geometry; a separate texture collection stores base64-encoded texture images keyed by asset_id. MongoClientProvider (@Singleton) manages the connection; the db and collection names are overridable via the setting table.

Both databases are bootstrapped with Docker (docker/1-mysql-run.sh … 4-mongodb-dbinit.sh), and docker/start-databases.sh runs them together.

The UI

The screenshot below shows the configurator in action — the Three.js WebGL viewer rendering an assembled product with the available-choices panel driving the configuration.
